Operating system
Windows 11 Home Chinese Edition
Product configuration
13th Generation Intel® Core™ i7-13620H processor
Intel® UHD Graphics
16GB LPDDR5 5200MT/s
1TB PCIe 4.0 SSD*
Starlight Silver

13th Generation Intel® Core™ i5-13500H processor
Intel® Iris® Xe Graphics eligible
16GB LPDDR5 6400MT/s
1TB PCIe 4.0 SSD*
Starlight Silver/Star Gray

13th Generation Intel® Core™ i5-13500H processor
Intel® Iris® Xe Graphics eligible
16GB LPDDR5 6400MT/s
512GB PCIe 4.0 SSD*
Starlight Silver/Star Gray

13th Generation Intel® Core™ i5-13420H processor
Intel® UHD Graphics
16GB LPDDR5 5200MT/s
1TB PCIe 4.0 SSD*
Starlight Silver

13th Generation Intel® Core™ i5-13420H processor
Intel® UHD Graphics
16GB LPDDR5 5200MT/s
512GB PCIe 4.0 SSD*
Starlight Silver

Processor
13th Generation Intel® Core™ i7-13620H processor
Efficiency core maximum turbo frequency 3.6GHz
Performance core maximum turbo frequency 4.9GHz
10 core 16 thread processor
L3 cache 24MB

13th Generation Intel® Core™ i5-13500H processor
Efficiency core maximum turbo frequency 3.5GHz
Performance core maximum turbo frequency 4.7GHz
12 core 16 Thread processor
L3 cache 18MB

13th generation Intel® Core™ i5-13420H processor
Efficiency core maximum turbo frequency 3.4GHz
Performance core maximum turbo frequency 4.6GHz
8-core 12-thread processor
L3 cache 12MB

Network
2*2 MIMO dual antenna
Support 802.11ax (Wi-Fi6) network protocol, compatible with 802.11 a/b/g/n/ac
Support 2.4GHz, 5GHz dual-band
Support Bluetooth 5.2

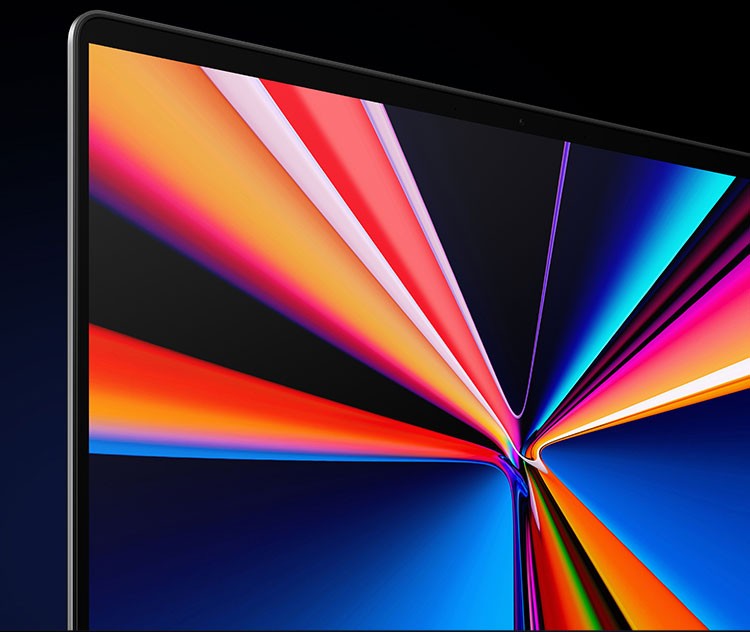

Display
14" Super Retina display
16:10 display ratio
1500:1 contrast ratio (typical value)
300nits brightness (typical value)
100% sRGB color gamut, support DC dimming
Support Dolby Vision
Passed German Rhine TÜV hardware-level low blue light certification /
German Rhine TÜV Flicker-free certification

i5-13500H, i7-13620H version:
2880 × 1800 resolution
60Hz/120Hz dynamic adjustment of refresh rate

i5-13420H version:
2240 × 1400 resolution
Refresh rate supports adjustment of 48Hz and 60Hz

Camera and input devices
Front camera 1080P
Fingerprint power button
Full-size keyboard, 3-level keyboard backlight, 1.3mm key travel
125mm × 81.6mm, PTP touchpad
Supports Microsoft PTP clickpad technology, which can realize precise cursor control and multi-finger gesture control functions, such as full-screen scrolling, program switching, screen zooming and other gestures

Audio
Speakers: 2 × 2W
4 microphones
Sound software: Dolby Atmos

Peripheral interface
USB-A 2.0 × 1
USB-A 3.2 Gen1 × 2
Thunderbolt 4 × 1 (i5-13500H, i7-13620H version) / Full-featured USB-C 3.2 Gen2 × 1 (i5-13420H version)
HDMI 2.1 TMDS × 1
3.5mm headphone and microphone jack × 1

Dimensions and weight
Length 312.24mm × Width 220.15mm × Thin to about 15.9mm*
Light to about 1.37kg*
Opening angle: 180°±5° (theoretical design value, plus or minus 5° in actual measurement is within a reasonable range)

Battery power
i5-13500H version:
Rated capacity: 56Wh
100W GaN adapter
Screen brightness 150nits, 50% volume, temperature 25 degrees Celsius, not connected to Wi-Fi, under laboratory environment test conditions,
The test local 1080p video playback time can be up to 12.58h*

i7-13620H version:
Rated capacity: 56Wh
100W GaN adapter
Screen brightness 150nits, 50% volume, temperature 25 degrees Celsius, not connected to Wi-Fi, under laboratory environment test conditions,
Tested local 1080p video playback time up to 12.15h*

i5-13420H version:
Rated capacity: 56Wh
68W adapter
Screen brightness 150nits, 50% volume, temperature 25 degrees Celsius, not connected to Wi-Fi, under laboratory environment test conditions,
Tested local 1080p video playback time up to about 18.13h*

Pre-installed software
Windows 11 Home Chinese version, WPS Office, Genuine Office Home and Student Edition, Xiaomi Cloud Service, App Store, Xiaomi PC Manager, Xiao Ai, Switch Assistant, App Store Xiaomi PC Edition

Warranty information
Whole machine warranty 2 Years (battery 1 year)

Outer packaging specifications
Laptop host × 1
Getting Started Guide (three-guarantee certificate) × 1

i5-13500H, i7-13620H version:
409mm × 75mm × 296mm
100W GaN power adapter × 1
USB-C fast charging cable × 1

i5-13420H version:
461mm × 75mm × 296mm
68W power adapter × 1
